61300621121
Manufacturer:
Wurth Electronics
Mfr.Part #:
61300621121
Datasheet:
Description:

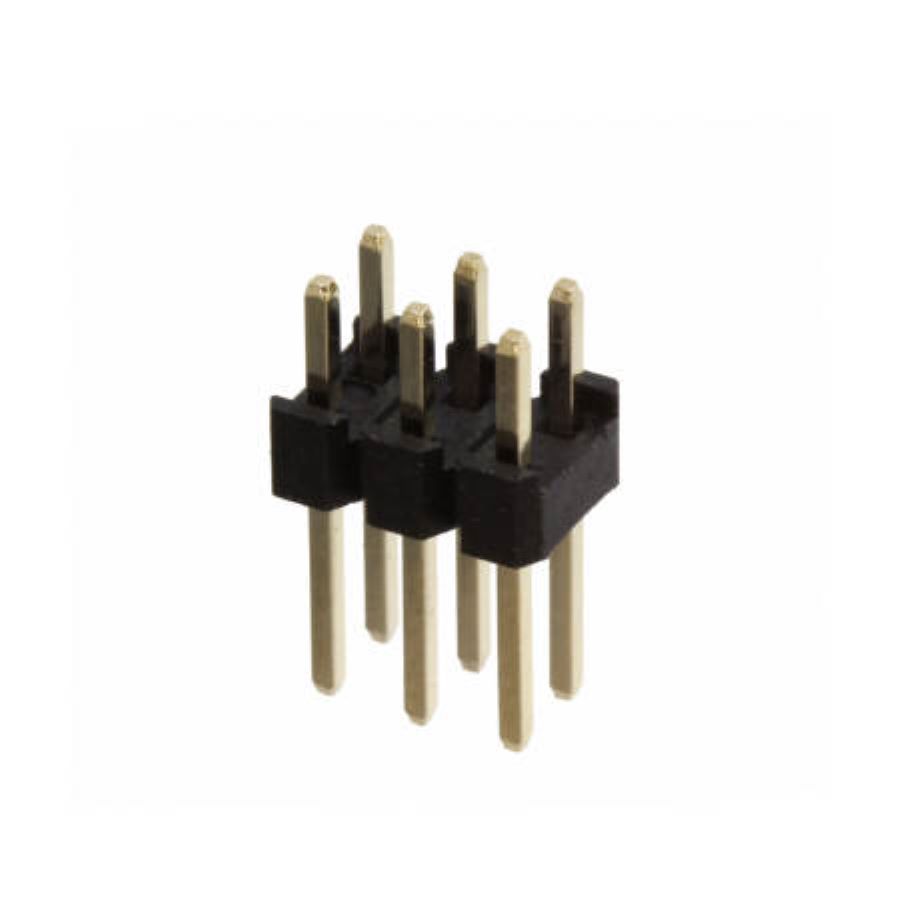

Headers and Wire Housings Through Hole Male Pin Number of Positions:6 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 6 |
| Height | 8.89 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Orientation | Vertical |
| Operating Supply Voltage | 250 V |
| Color | Black |
| Gender | Male |
| Number of Contacts | 6 |
| Connector Type | Male Pin |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Contact Resistance | 20 mΩ |
| Contact Mating Length | 5.9944 mm |
| Mating Post Length | 6 mm |
| Termination Post Length | 3 mm |
Stock: 14809
Distributors
pcbx
pcbxUnit Price$0.31928
Ext.Price$0.31928
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.31928 | $0.31928 |
| 10 | $0.27282 | $2.72820 |
| 25 | $0.22752 | $5.68800 |
| 50 | $0.18971 | $9.48550 |
| 100 | $0.17232 | $17.23200 |
| 300 | $0.16689 | $50.06700 |
| 500 | $0.16164 | $80.82000 |
| 1000 | $0.15655 | $156.55000 |
